Power Distribution Panels

We are a leading manufacturer of Power Distribution Panels (PDP), also known as panelboards, breaker panels, or electric panels. A PDP is an integral part of the electrical supply system that distributes incoming power into subsidiary circuits while ensuring safety through protective fuses or circuit breakers housed within a common enclosure.

Our PDP panels are manufactured using high-grade raw materials and comply with international quality standards. They are widely recognized for their superior performance, energy efficiency, durability, and long service life. To guarantee defect-free delivery, each panel undergoes rigorous testing by our skilled quality controllers.

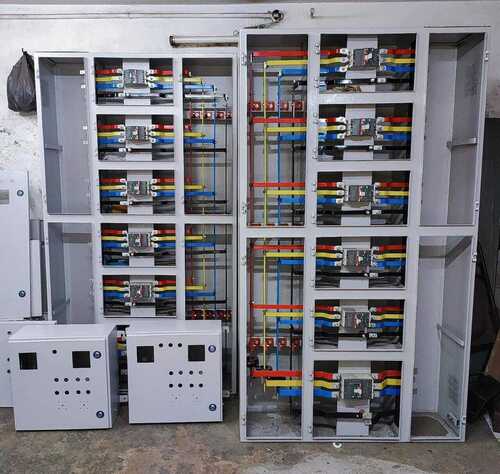

Industrial Power Distribution Panels manufacturer in India

Key Features


  • Rated Voltage: 415V AC, 3 Phase, 50Hz (customizable as per requirement)
  • Rated Current Capacity: Up to 6300A
  • Short Circuit Withstand Capacity: 50kA to 100kA (as per design)
  • Bus Bar Material: High conductivity Aluminum / Electrolytic Copper
  • Enclosure Protection: IP42 / IP54 / IP65 (indoor or outdoor application)
  • Mounting Options: Floor-mounted / Wall-mounted designs
  • Construction: Modular, robust, and compartmentalized for safety and easy maintenance
  • Standards Compliance: IEC 61439 / IS standards

Additional Configurations & Accessories


  • Protective Devices: MCCBs, ACBs, MCBs, RCCBs, and ELCBs for circuit protection
  • Digital / Multifunction Meters: For monitoring current, voltage, power factor, load, and harmonics
  • Surge Protection Devices (SPDs): To safeguard against voltage spikes and surges
  • Phase Monitoring Relays: For phase sequence, phase loss, and voltage imbalance protection
  • Automatic / Manual Changeover Facilities: Seamless switching between mains and DG power
  • Communication Interfaces: SCADA / Modbus / IoT integration for remote monitoring and control
  • Alarm & Indication Systems: Visual and audible alarms for faults, overload, or tripping
  • Future Expansion Provisions: Spare feeders and slots for system scalability
  • Cooling Options: Forced air ventilation or heat dissipation mechanisms
  • Enclosure Options: Dust-proof, weather-proof, flame-retardant, or customized enclosures

Get in Touch

For custom designs, specifications, or a quotation tailored to your project, contact our sales team. We offer flexible configurations to meet both commercial and heavy industrial requirements.
